Eruption of Mount Nyiragongo, Democratic Republic of the Congo, 22 May 2021

Good Afternoon!

The recent eruption Mount Nyiragongo has taken us away from Iceland and the ongoing eruption at Geldingadalur, Fagradalsfjall, Iceland, to look at the East African Rift System. Unlike the current benign eruption in Iceland, there are 32 known fatalities from Mount Nyiragongo’s eruption, 3,629 homes and buildings destroyed, more than 20,000 displaced, many unaccounted for and several hundred thousand evacuated from parts of Goma to Sake.  The current alert status for the volcano is orange.  Our thoughts are with all those affected by the eruption.

As we refer to different lavas in more detail than originally anticipated, we will explain them in future posts; please bear with us for the moment.

Fig 1: Photo of Mount Nyiragongo by B. Martinelli, 1994 (courtesy of Jack Lockwood, U.S. Geological Survey) (left) and screenshot of the Nyiragongo crater with lava lake pre 2021 eruption from Google Maps (right).
Fig 1: Photo of Mount Nyiragongo by B. Martinelli, 1994 (courtesy of Jack Lockwood, U.S. Geological Survey) (left) and screenshot of the Nyiragongo crater with lava lake pre 2021 eruption from Google Maps (right).

It has been reported that the volcano had not been fully monitored for several months due to lack of funding for the Goma Volcano Observatory. Monitoring improved in May 2021 when an American partner helped to get the internet connection to seismometers restored.  This, and the ensuing eruption, must have been worrying times for the Observatory.

2021 Eruption

Run Up to the 2021 Eruption

Reports on GVP for Mount Nyiragongo note that strong thermal anomalies and gas emissions were observed in the period June 2018 to May 2020, along with incandescence, seismicity and gas / steam plumes.

In the period from June 2020 to November 2020, daily thermal activity was observed, indicating the presence of a large lava lake; levels of SO2 emissions fluctuated during the period.

Eruption May 2021

Mount Nyiragongo erupted on 22 May 2021 at around 18:15 local time, sending torrents of low viscosity lava down the side of the volcano, reaching as far as the outskirts of Goma.  The following account of the eruption is summarised from bulletins on GVP.

The crater lava lake drained followed by the opening of at least two fissures on the south flank of the volcano. The first fissure’s lava originated near the Shaheru crater flowing eastwards over a main road; lava flows from the second fissure reached villages north of Goma destroying around 3,629 homes and buildings, displacing 20,000 to 25,000 people, and cutting off electricity and water supplies to parts of the city. Ash plumes, caused by collapse in the summit crater, rose initially to 45,000 feet then 20,000 to 30,000 feet.

Eye witnesses report that no felt earthquake preceded this eruption, which is consistent with instrument monitoring.  Between 22 and 24 May 2021 earthquakes occurred between the summit and Lake Kivu.  Tremors were felt in Goma every 30 minutes from midday 23 May 2021. Cracks appeared in different parts of the city, stretching several hundred metres southwards to the lake, some emitting gases and flames. A 5.1 M earthquake occurred beneath Lake Kivu at 10:37 on 24 May 2021. Seismicity remained intense on 25 May with more than 130 earthquakes between 2M and 5M recorded in a 24-hour period. News reports indicated hundreds of damaged buildings in neighbouring Rwanda.  Rwanda suffered 13 earthquakes in excess of 4.0 between 23 May to 27 May 2021.  Seismicity has since decreased, although there is some evidence suggesting magma movement beneath the city of Goma.

The volcano is monitored by the Observatoire Volcanologique de Goma (OVG).  OVG have given four possible scenarios as to how the eruption could progress:

  1. A new fissure eruption on the southern flanks of the volcano;
  2. A new eruption with fissures in or extending to the cities.
  3. A new eruption with fissures extending to Lake Kivu.
  4. Activity subsides.

Lake Kivu contains dissolved gases, including CO2.  Heat or other disturbance from fissure activity beneath the lake may release dissolved CO2 in a cloud that could kill at lower elevations in its path.  Although the 2002 eruption did not cause a large gas release from the lake, you can never say never.


Tectonic Setting

Nyiragongo is 3,470 m high stratovolcano with a 1.2 km wide summit crater which contained a small active cone and lava lake, located in the Virunga Mountains in the Kivu Rift on the western arm of the East African Rift.  The volcano’s edifice is built of lava flows and pyroclastics. Goma, with a population of 670,000 is located on the shores of Lake Kivu 12 km south of the volcano.

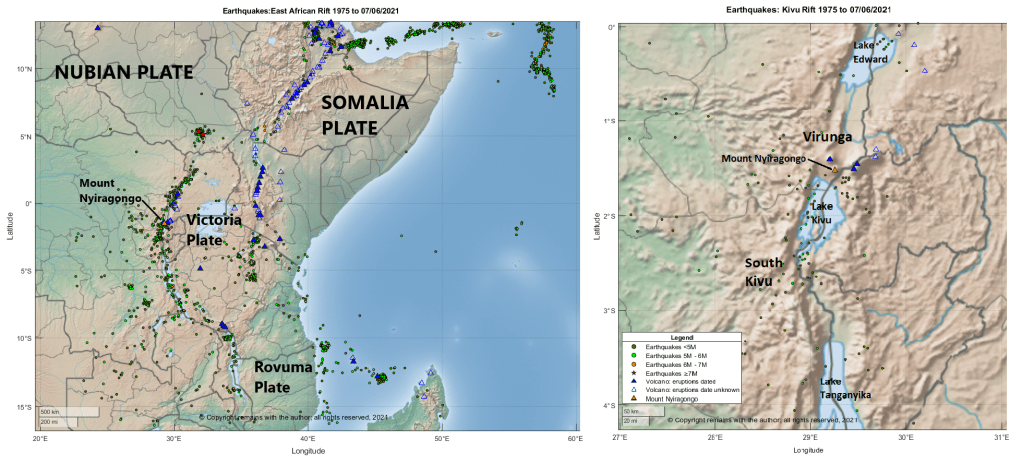

Fig 2: Tectonic setting by the author: East African Rift System on the left; and, a close up of part of the Kivu Rift on the right.  Earthquakes and volcanoes delineate the rift system. Raw earthquake data for the period 1975 to 7 June 2021 obtained from USGS (see link below). Green dots denote earthquakes < 5.0M, light green dots, earthquakes between 5M and 6M, orange dots, earthquake between 6M and 7M, red stars, earthquakes >7M, blue filled triangles, Holocene volcanoes with known eruption dates, blue unfilled triangles, Holocene volcanoes whose dates of eruption are not known, orange filled triangle, Mount Nyiragongo. © Copyright remains with the author; all rights reserved, 2021.

Volcanic and tectonic activity in the area is complex, influenced by to the opening of the East African Rift System in the midst of pre-existing areas of crustal weakness.  The East African Rift System is a 3,000 km long continental rift extending from the Afar Triple Junction to western Mozambique.  The Nubian Plate is moving away from the Arabian and Somalia Plates.  Mantle plumes are thought to be the cause of doming and rifting. Rifting occurs at rates of 1 to 4mm a year, increasing north to south on the western arm of the rift and increasing south to north on the eastern arm.  The slower rate of rifting in the continental lithosphere results in different volcanism than oceanic crust settings.

The Kivu Rift was created c. 5 Ma; it extends between Lake Tanganyika to Lake Albert in the central part of the western branch of the East African Rift System in an area of uplift called the Kivu Dome.  There are two areas of volcanism associated with the rift, the South Kivu Volcanic Province and the Virunga Volcanic Province. Lake Kivu, itself, is a complex series of basins, the result of a rift depression whose waters drained northward until blocked by volcanic activity in the Virunga Volcanic Province c. 11,000 years ago, after which they flowed southwards.  We will focus on the Virunga volcanism.

The Virunga Mountains comprise eight volcanoes on the border between the Democratic Republic of the Congo, Rwanda and Uganda.  The volcanoes are: Mount Karisimbi, a 4,507m a complex basanitic-to-trachytic volcano , last known eruption 8050 BC; Mount Mikeno, a dormant 4,437m volcano; Mount Muhabura, 4,127m basanitic-to-trachyandesitic stratovolcano; Mount Bisoke, a 3,711m trachyandesitic stratovolcano, last eruption1957 ; Mount Sabyinyo, an extinct 3,674m volcano and the oldest in the range; Mount Gahinga, an extinct 3,474m volcano; Mount Nyiragongo,  a 3,470m foidite stratovolcano, last eruption 2021 ; and Mount Nyamuragira, a 3,058m high-potassium basaltic shield volcano, last eruption 2021.

In the Virunga Volcanic Province, volcanic activity occurred in two stages:  1) pre-rift doming which produced alkali basalts in west Virunga c. 13 Ma to 9 Ma, after which volcanic activity ceased; and, 2) the opening of a trans extensional fault zone with ENE-WSW displacement c. 2.6 Ma.

Mount Nyiragongo’s Lavas

The Virunga Volcanic Province lavas are leucite basanite (e.g., Nyamuragira) from primitive mantle at depths of between 80km to 150km, or a more enriched leucite-melilite nephelinite (e.g., Nyiragongo) from mantle source at the same depth which has been enriched by contact with a carbonatite source.  The source for the carbonatite is thought to be either from contact between rising magma and carbonate containing fluids or melt addition before or during magma generation 500 ma to 800 ma.

Nyiragongo’s melilite leucite nephelinite lavas are classed as foidite with minor basalt / picro basalt.  It is the low silica foidites that make her lava’s so fluid, despite the volcano being a stratovolcano. These lavas can reach a speed of 60 – 100 km per hour and, unlike most lavas, cannot be outrun.    The edifice, itself, is built of lava flows interspersed with pyroclastics.

Mount Nyiragongo’s Historic Eruptions

Recording of Nyiragongo’s eruptions started in 1884.  GVP records 20 Holocene eruptions, all of which are VEI 1, except for the VEI 2 January 2002 eruption.  The most recent eruptions were in 1977, 1994, 2002 and now 2021.

In 1991, Mount Nyiragongo was designated a Decade Volcano, worthy of study.

1977 Eruption

On January 10, 1977, a system of N-S fissures opened near the Baruta and Shaheru craters and the lava lake drained. Initial lava flows reached speeds of 100 km per hour due to the altitude of the fissures between 1,500m and 2,000m, combined with the low viscosity of the lava. The lava flow reached 20 km from the fissures.  600 people were killed.  A herd of elephants unfortunate enough to be caught up in the flow were preserved as lava formed moulds.

2002 Eruptions

Run Up to the 2002 Eruption

The 2002 eruption was preceded by seismic and fumarolic activity enabling warning to be given and the 400,000 residents in the hazard zone to be evacuated.  Initial long period events and volcanic tremors were recorded between December 2000 and January 2002.  Mount Nyamuragira erupted in February 2001 for two weeks but the seismicity remained high.  In October 2001, seismic activity increased and a tectonic earthquake between 3.5M and 4M was felt, followed by a high amplitude volcanic tremor.  White plumes were observed in the Shaheru and central craters and a dark plume was visible from the spatter cone accompanied by new fumarolic activity.    In January 2002, seismic activity increased again, along with a >4M earthquake and the resumption of fumarolic activity; an eight-hour lull in seismic activity preceded the onset of the eruption.

Eruption January 2002

On 17 January 2002, a 13 km fissure system opened on the south side of the volcano which reached Lake Kivu; lava reached Goma, itself, covering part of the local airport’s runway and reaching the lake. Again, the initial speed of the lava was high at altitude but much lower in the vents nearer to Goma (0.1 to 1km per hour). Lava erupted from the higher parts of the fissure is thought to have temperatures of c.1370°C with little or no crystal content, whereas that closer to Goma was thought to have cooled to 1,320°C causing some crystallisation and increasing its viscosity.  Lava covered 4.7 km2, leaving 120,000 people homeless. 245 fatalities were caused by CO2 and buildings collapsing from lava and seismic activity.  A three-month seismic swarm which followed caused more building damaged.

Six months after the first eruption the volcano erupted again in 2002.

Current Status

For more information on the status of the current eruption, please refer to The Goma Volcano Observatory Face Book page: Observatoire Volcanologique de Goma OVG | Facebook or their partner’s site: GeoRiskA  Eruption of the Nyiragongo volcano | Georiska (

Let’s hope the volcano settles down or that future activity causes no harm.

The Armchair Volcanologist

© Copyright remains with the author; all rights reserved, 2021

Sources and Further Reading

Global Volcanism Program, Smithsonian Institution:

Raw earthquake data and “Seismotectonics of the East African Rift System”, USGS:

A. Pouclet, H. Bellon, K. Bram, “The Cenozoic volcanism in the Kivu rift: Assessment of the tectonic setting, geochemistry, and geochronology of the volcanic activity in the South-Kivu and Virunga regions”, Journal of African Earth Sciences, 121, (2016), 219-246:

R. Gill, “Igneous Rocks and Processes A Practical Guide”, Wiley-Blackwell, 2010

P. Francis, C. Oppenheimer, “Volcanoes”, Second Edition, Oxford University Press, 2004

R. V. Fisher, G. Heiken, J. B. Hulen, “Volcanoes Crucibles of Change”, Princeton University Press, 1997
