Grímsvötn, Aviation Code Raised to Orange 6th December 2021 (Since Lowered to Yellow)

Good morning!

Update 8 December 2021

The alert level has been lowered to Yellow. To date no eruption has followed the jökulhlaup or increased seismicity. As Grímsvötn may erupt with little warning, the situation remains closely monitored.

Original Post 6 December 2021

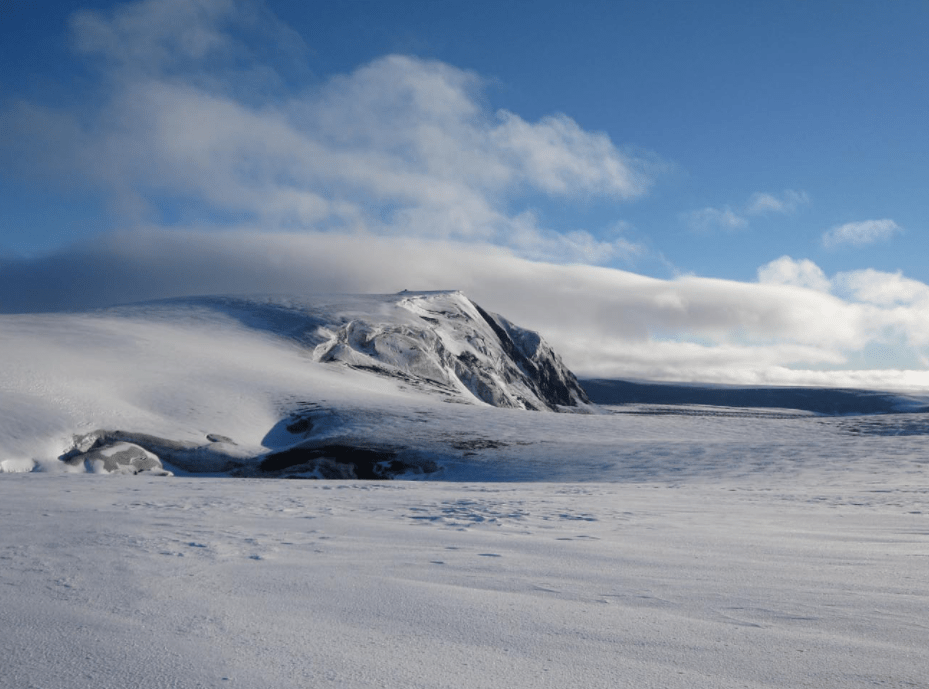

Fig 1: Líndal. A. (1 June 2011). Grímsvötn: photo 3 of 14. Retrieved from http://icelandicvolcanoes.is/?volcano=GRV

The alert level for Grímsvötn  has been raised to orange following the draining of the caldera lake over the past few days, the resulting jökulhlaup, and increased seismicity today.

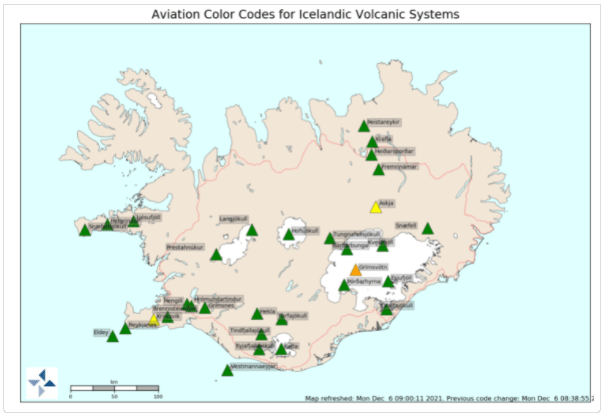

Fig 2: Aviation codes for Icelandic Volcanoes.  Grímsvötn is orange.  Source: IMO

The ice-cap has subsided by c. 77 metres.  The water drained via the Gígjukvísl river; the discharge in Gígjukvísl river yesterday around noon was 2800 m3/s, reducing later in the day.

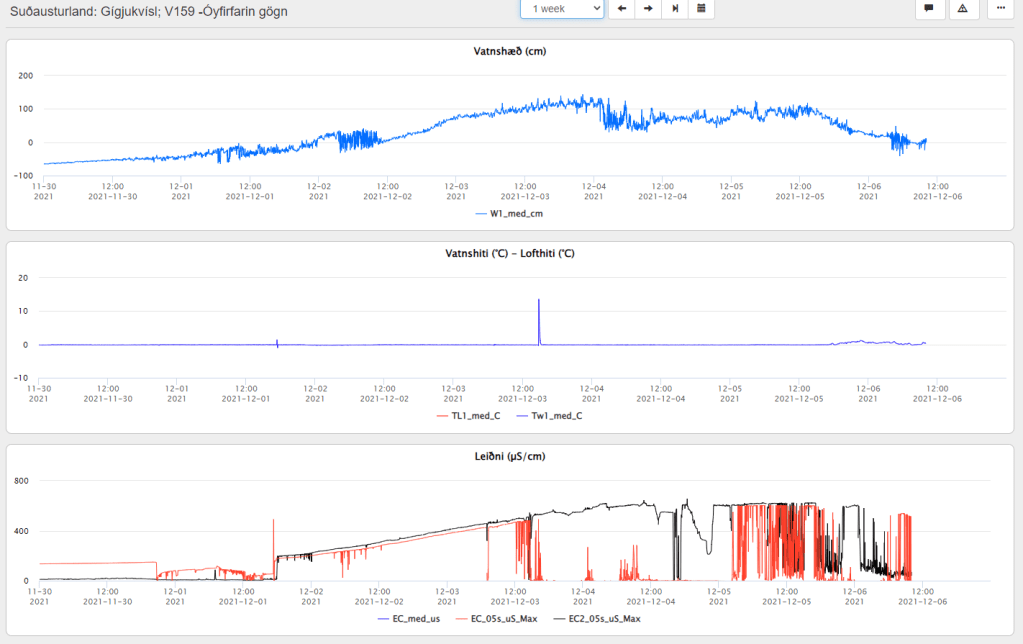

Fig 3:  Measurements of the jökulhlaup as it impacted the Gígjukvísl river.  Source: Línurit (vedur.is)

At the time of writing, there have been 25 earthquakes in the last 48 hours in the vicinity of Grímsfjall.  A magnitude 2.3 occurred at 06:15, followed shortly afterwards at 06:16 by a magnitude 3.6.  There have been a few aftershocks.  No volcanic tremor has been detected.

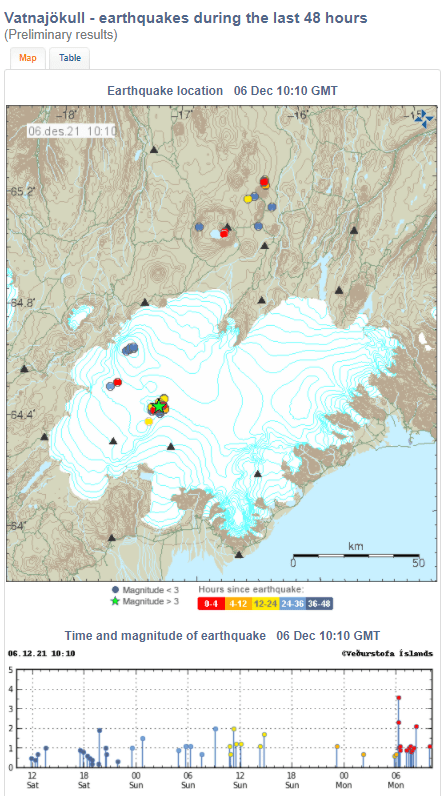

Fig 4: Map of earthquakes at Vatnajökull.  Grímsfjall is roughly where the green star is; the green star is the location of the 3.6M earthquake.  Source: Vatnajökull (vedur.is)

Volcanic eruptions have occurred after draining of the caldera lake in the past, attributed to the sudden decrease in pressure destabilising the system; IMO cite the 2004, 1934 and 1922 eruptions.

Armchair Volcanologist

© Copyright remains with the author; all rights reserved, 2021

Sources

Icelandic Met Office: IMO

Icelandic Volcanoes: Icelandic Volcanoes (icelandicvolcanos.is)

A Quick Look at Iceland: Total Earthquakes by Year 2009 to 23 October 2020

Good Morning!

While we are waiting to see if there is any volcanic activity at Grímsvötn or her neighbours, let’s take a look at how the current seismic activity in Iceland compares to previous years.

Our database, comprised of earthquake data downloaded from IMO (see Sources below), now goes back to 29 December 2008 and extends to 23 October 2020, although we may reupload the last week soon because IMO may have been in the process of updating the record when we downloaded the data.

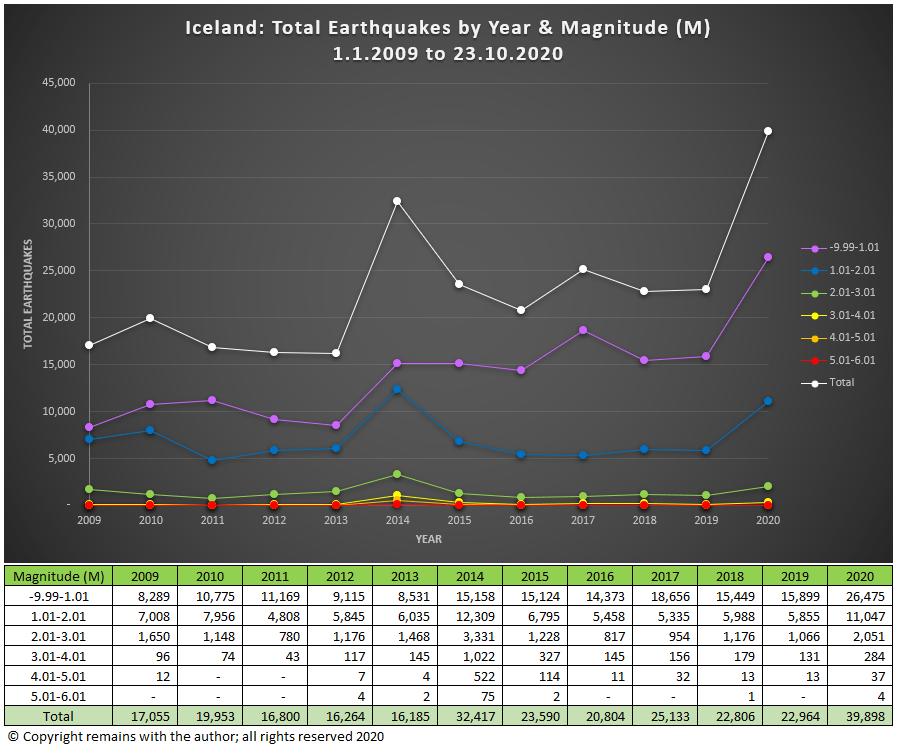

Fig 1: Iceland: Total Earthquakes by Year and Magnitude by the author, using data downloaded from IMO (see Sources below).  © Copyright remains with the author; all rights reserved, 2020.

From our graph, we can see that the total number of earthquakes was up in 2010, 2014, 2017 and 2020.  In 2010, Eyjafjallajökull erupted, in 2014, Barðarbunga erupted at the Holuhraun fissure; in 2017, there was no subaerial volcanic activity, although Katla may have had some subglacial activity, and, in 2020, there is rifting both in the Reykjanes Peninsula and Tjörnes Fracture Zone but we have yet to see what, if any, volcanic activity emerges.  Interestingly, the 2011 eruption of Grímsvötn did not push the total earthquakes up in 2011.

Let’s take a look at activity by region. Here we look at the four main volcanic regions: the Tjörnes Fracture Zone, Vatnajökull, Myrdalsjökull and the Reykjanes Peninsula, where there is most seismic activity.

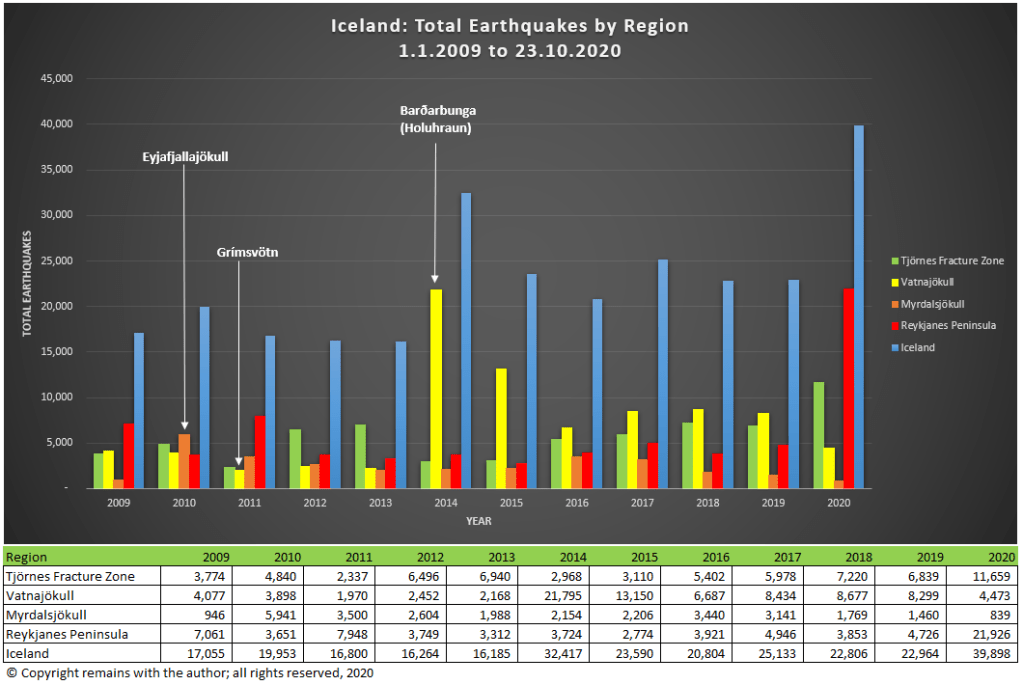

Fig 2: Iceland Total Earthquakes by Region and Year by the author, using data downloaded from IMO (see Sources below). Note: not all regions

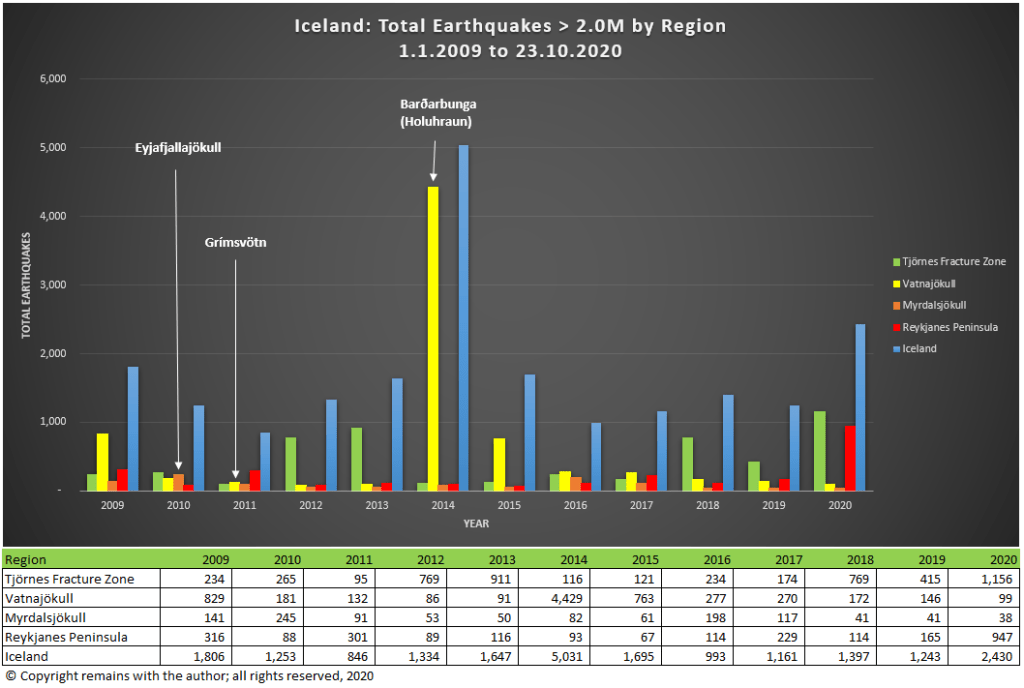

Fig 3: Iceland Total Earthquakes > 2.0M by Region and Year by the author, using data downloaded from IMO (see Sources below). Note: not all regions are shown.  © Copyright remains with the author; all rights reserved, 2020.

We see that the eruption of Eyjafjalljokull increased the number of earthquakes in Myrdalsjökull but not to the extent that the eruption of Barðarbunga at the Holuhraun fissure and subsidence in the caldera pushed up the earthquakes for Vatnajökull in 2014 and subsequent years.  In fact, the total number of earthquakes in all regions, except Myrdalsjökull, has remained elevated since Holuhraun.

Our database does not extend back far enough to draw any firm conclusions, however, it would appear that rifting events such as Holuhraun produce far more earthquakes than volcanic activity on its own.

Tjörnes Fracture Zone and on the Reykjanes Peninsula

This rather begs the question as to what is happening this year with the large earthquake swarms both in the Tjörnes Fracture Zone and on the Reykjanes Peninsula.  Unless our database does not go back far enough, neither the 2011 Grímsvötn nor the 2014 Barðarbunga eruption was preceded by such large earthquake swarms in other regions.

The fact that there is significantly raised activity this year in both regions suggests to us that we may be witnessing the normal plate separation on the Mid Atlantic Ridge (it is not entirely smooth), possible local magma ascent, and / or the plates accommodating an ascending blob of magma from the mantle plume, which is believed to be under the Vatnajökull icecap. There is ground deformation at several spots under the Vatnajökull icecap which points to magma ascent.

IMO have reported that there could be a magmatic intrusion at depth on the Reykjanes Peninsula; this is supported by ground deformation.

Gas measurements, ground deformation and recent seismic activity at Grímsvötn (not enough to show in our graphs but above the background levels for the volcanic system) have led to the Icelandic authorities to consider that an eruption is possible there in the not too distant future and to raise the alert level a notch (see earlier article).

It is too soon to tell whether or not the rifting events, themselves, will result in eruption(s); it is possible that it is just a coincidence that we are seeing two large rifting events at roughly the same time – both areas are seismically active.  Time will tell.

In the meantime, we will continue to watch.

The Armchair Volcanologist

© Copyright remains with the author; all rights reserved, 2020.

Sources:

For raw earthquake data and updates:

Icelandic Met Office: https://en.vedur.is/

A Quick Update for Grímsvötn: Alert level: Yellow

The Icelandic Met Office (IMO) has updated the aviation alert for Grímsvötn from green to yellow today (30.09.2020) because the volcano’s activity is above background level, now at a level comparable to that which preceded previous eruptions.  They note:

  • Above average seismicity for September 2020;
  • Deepening cauldrons in the ice-cap round the caldera from geothermal activity;
  • Surface deformation exceeding that which preceded the 2011 eruption;
  • Magmatic gases detected in the summer of 2020.

An eruption is not considered imminent.

Water levels in the sub-glacial lake are high indicating possible jökulhlaups in the coming months.   Draining of the lake by a jökulhlaup depressurised the system before the 2011 eruption, so an eruption is considered possible in the event of a jökulhlaup.

Activity may decrease without an eruption in this instance; only time will tell.

Jumping the gun a bit on our next post in the volcanic risk mitigation series, the IMO’s alert is an example of using alert levels to highlight the increased risk of an eruption to those who need to know, without being unduly alarmist – a straightforward statement of the facts supporting the current status. For the exact wording of the alert, please follow the link below.

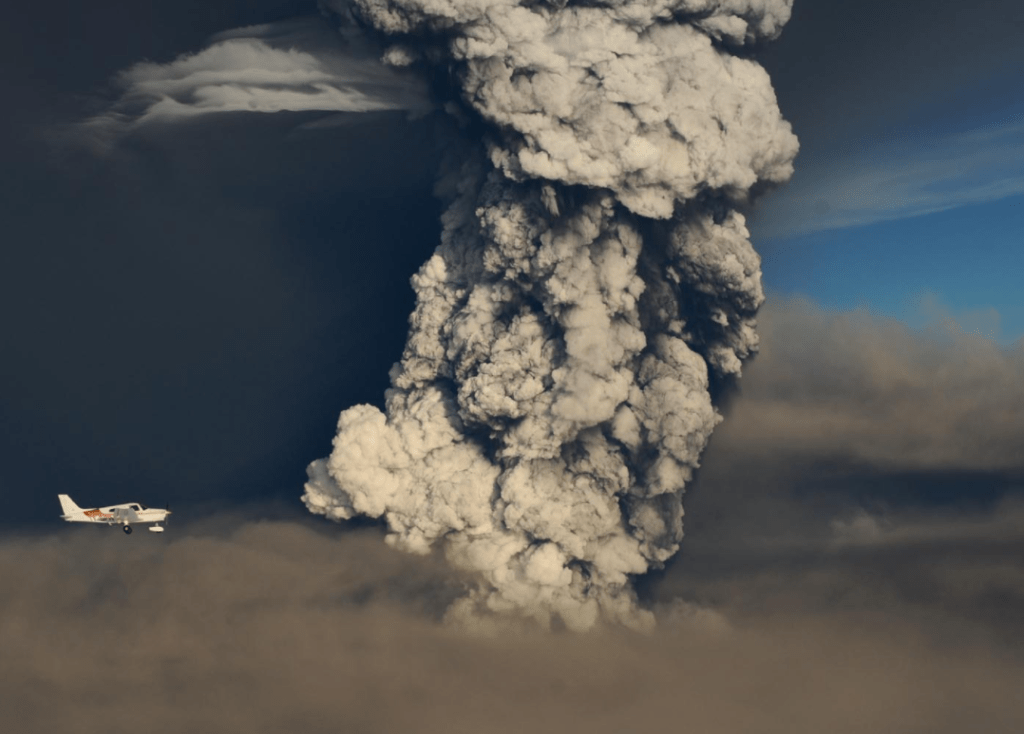

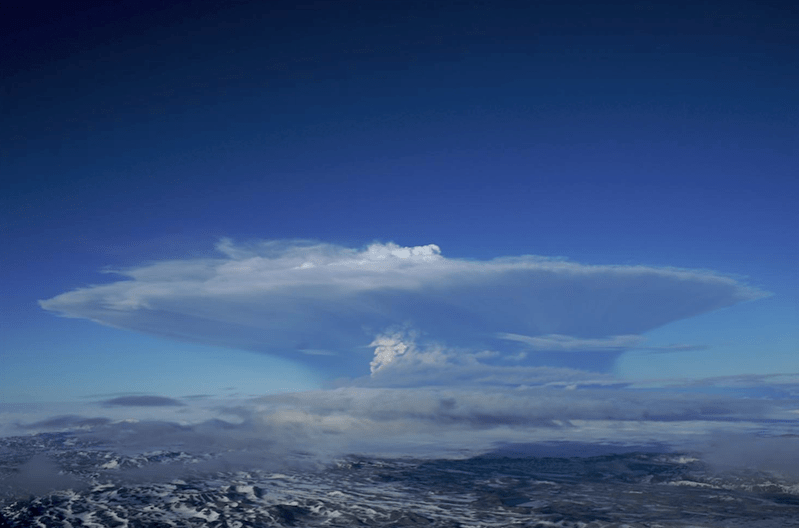

Fig 1: Eruption column 3 hours after the onset of the 2011 eruption of Grímsvötn. Source: Sigurjónsson, O. (2011 May 21). Grímsvötn: photo 10 of 14. Retrieved from http://icelandicvolcanoes.is/?volcano=GRV

Grímsvötn is located under the Vatnajökull ice-cap in an active rift zone of the Eastern Volcanic Zone, Iceland. She erupts frequently; her last in 2011 was a large VEI 4, which impacted local farmers and livestock and aviation in Europe.

Update (02/10/2020)

Googling around a bit more, I note that Iceland’s Department of Civil Protection and Emergency Management, Almannavarnir, have reported in their 25 September 2020 bulletin that an eruption is considered likely this Autumn (use Google Translate or other tool, if you need to, as it is in Icelandic).

For more information, please visit IMO.

The Armchair Volcanologist

30 September 2020

Source and Further Reading:

Icelandic Met Office: https://en.vedur.is/   &  https://en.vedur.is/about-imo/news/the-aviation-color-code-for-grimsvotn-changed-from-green-to-yellow

Almannavarnir: https://www.almannavarnir.is/frettir/

Google Translate: https://translate.google.com/

Grímsvötn – Grumbling Quietly

Good Afternoon!

While browsing IMO’s website  a few days ago, I saw that signs have been detected that Grímsvötn is getting ready for another eruption, IMO ; a team of scientists noted large sulphur dioxide emissions near the south west caldera rim, indicating that magma is close to the surface. At the time of writing, the alert level for Grímsvötn remains at green.

Grímsvötn is Iceland’s most active volcano, erupting every 10 years and last erupting in 2011 with a VEI 4.

Fig 1 Grimsvotn 2011 eruption.  Photographer: Sigurjónsson,O.  Grímsvötn (GRV): photo 2 of 14.  Retrieved from Icelandic Volcanoes: http://icelandicvolcanos.is/?volcano=GRV

Geological Setting

Grímsvötn is one of six active volcanoes under the Vatnajökull ice cap: Bárðarbunga, Kverkfjöll, Grímsvötn, Esufjöll, Þórðarhyrna, Öræfajökull.  Apart from Þórðarhyrna (THO in the map below), the other volcanoes are different volcanic systems.

The Vatnajökull volcanoes are part of the Eastern Volcanic Zone in Iceland.  Volcanism here is caused by rifting and extension from the separation of the North American and Eurasian Plates.  As noted in an earlier post, the Eastern Volcanic Zone accommodates 40 to 100% of the separation.

Our description of the Grímsvötn volcanic system is largely based on Magnús T. Guðmundsson and Guðrún Larsen’s description in Icelandic Volcanoes (ref. Sources below for the full accreditation).

The Grímsvötn volcanic system

The Grímsvötn volcanic system, itself, is made up of two central volcanos and fissure swarms.  It is partly covered by ice.

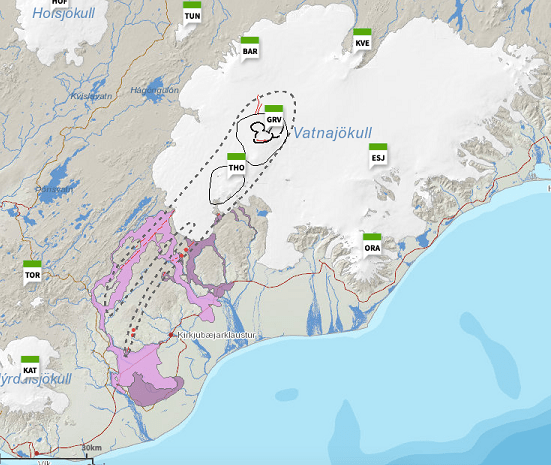

Fig 2 The Grímsvötn volcanic system showing craters, central volcanoes and fissure swarms.  Retrieved from Icelandic Volcanoes (see Sources below for full accreditation).

The Central Volcanoes

The Grímsvötn central volcano is a 1722m high, 15-16km diameter caldera complex covered by the Vatnajökull ice-cap, with ice depths of 100m to 700m; she has an 8km by 10km ice-filled caldera.  Grímsfall (GFUM) is the highest point on the caldera rim. There is a subglacial lake in the caldera under a 200 – 300m ice shelf with an associated geothermal area. The lake has been the source of many jökulhlaups.

The Þórðarhyrna central volcano, also subglacial, is a 1650 high with a 15 km diameter, connected to Grímsvötn by a subglacial ridge.  The volcano, itself, has a small intrusive complex but does not appear to have a large magma reservoir. There is a geothermal area near Pálsfjall.

Ice cover has restricted study of the volcanoes.  However, Grímsvötn has been around for long enough to develop a caldera – possibly more than 100,000 years.

Grímsvötn’s lava types are tholeiitic basalt with basaltic andesite and dacite / rhyolitic outcrops in the Þórðarhyrna central volcano.  The presence of a shallow magma reservoir is inferred from the geothermal field in the caldera.  The 2011 eruption of Grímsvötn produced 0.8km3 basaltic tephra.

Þórðarhyrna is less active than her neighbour; the last eruption occurred in 1903 with a VEI 4.  It is possible that she had a second eruption in 1753, resulting in jökulhlaups.  Again, ice cover has limited geological study.  There is little seismic activity near Þórðarhyrna.

The Fissure Swarms

The fissure swarm is about 100 km long and 18 km wide.  Rifting is believed to occur along the entire swarm.   The northern end of the fissure swarm is covered by the Vatnajökull ice-cap; the southern 80km is ice-free.  Subglacial ridges characterise the northern end of the fissure, but not the ice-free southern end where crater rows delineate the fissure, including the Laki.

Three known subglacial eruptions have occurred since 1867 at Gjálp 10km to 15km north of Grímsvötn, itself.  The eruptive products include subglacial ridges and some airborne tephra.  The 1996 eruption produced basaltic andesite.

Four effusive eruptions have been identified in the ice-free section of the fissure swarm southwest of Grímsvötn in the last 8,000 years; lava volumes have been between 1 km3 to 14 km3 with up to 0.7km3 of tephra.  The largest fissure eruption was the Laki eruption in 1783 to 1784.  No eruptions have been identified for the ice-covered section of the fissure swarm.

The Laki Fissure Eruption 1783 -1784

This eruption was well documented at the time; the Reverend Jón Steingrímsson’s 1788 account in “A complete description of the Síða Fires” gives a detailed eye-witness account.

The 1783 eruption occurred on 27km long fissure and lasted from 8 June 1783 to 7 February 1784.  The early phase consisted of a series of ten or more explosive tephra events, each followed by effusive lava flows.  Grímsvötn, itself, erupted in July 1783 to May 1785 causing ash fall and jökulhlaups.

The Laki eruption was pre-empted by earthquakes of increasing intensity from mid-May to 8 June 1783 when a large ash cloud and ash fall appeared, followed by lava columns over 1km high from new fissure to the north.  Volcanic gases filtered out sunlight, making the Sun appear red.  Accompanying rainfall was acidic, irritating people’s eyes and skin.  Lava flows filled river gorges, overflowing to cover surrounding farmland.  During the eruption, Mount Laki was destroyed; I am not sure how big she was and how much her destruction contributed to the vast tephra output.

The eruption is rated a VEI4, having produced 0.7km3 of tephra which covered more than 8,000 km2, and 14 km3 of lava. Volcanic gases, including fluorine, killed more than half of the livestock and the “Haze Famine” killed 20% of the Icelandic population.  Further afield, 100 million tonnes of sulphur dioxide, having reached the jet stream, spread acidic sulphate aerosols round the Northern Hemisphere, damaged vegetation and crops in Europe and Alaska, caused severe winters and annual cooling of around 1.3°C that lasted for two to three years.

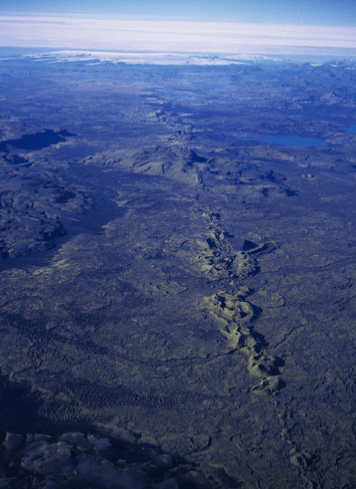

Fig 3: Laki Crater Row: Photographer: Sigurðsson, O.  Grímsvötn (GRV): photo 1 of 14.  Retrieved from Retrieved from Icelandic Volcanoes: http://icelandicvolcanos.is/?volcano=GRV

According to GVP, the Grímsvötn volcanic system has had 86 Holocene eruptions ranging from VEI 0 to VEI 6.  The VEI 6 occurred around 10200 BP and is the thought to be the source of the Saksunarvatn Tephra, a basaltic tephra which covered an area of 2 million km2 around the North Atlantic.  The Saksunarvatn Tephra, like the Vedde Ash from Hekla, is a geological time marker, although radiocarbon dating of the Saksunarvatn Tephra shows that it may have come from seven eruptive events over a 500 year period from 10400 BP to 9900 BP

Grímsvötn’s most recent eruptions from 1996 to 2011 range from VEI 3 to VEI 4. They were preceded by a small increase in seismicity and small earthquake swarms, except for the 1996 Gjálp eruption.  The 1996 eruption was preceded by a 5.4 earthquake on Barðabunga’s northern caldera rim,  swarms over a two day period at Barðarbunga’s north and northwest caldera rims and at Grimsvotn’s southern caldera rim, followed by a swarm from the north Bardarbunga caldera rim that migrated to Gjálp.

Recent Seismicity

So, what does our earthquake data set tell us about the likelihood of an eruption at Grímsvötn?  The answer is a disappointing “not a lot”.   We can see that Grímsvötn has a fairly steady stream of earthquakes but no obvious swarms.  However, given the proximity of Grímsvötn to other volcanoes, we may have attributed some of Grímsvötn’s activity to another volcano in error.  Plots are shown below, including one for Vatnajökull which shows the problem.

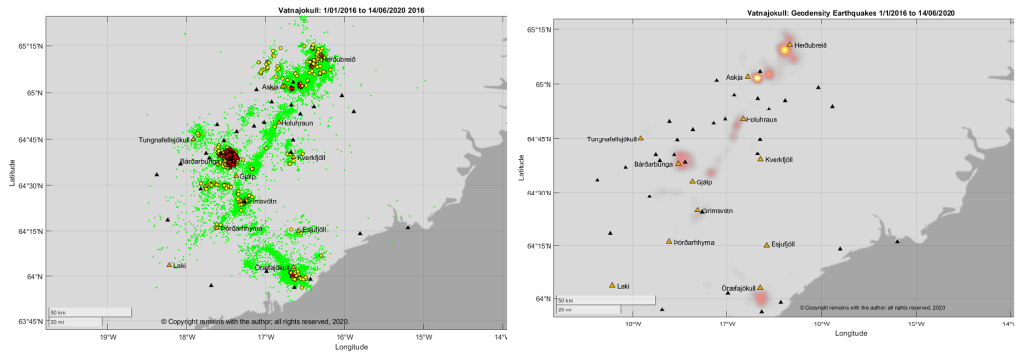

Fig 4: Earthquake plots by the author of seismic activity in the Vatnajökull region, Iceland, from 1 January 2016 to 14 June 2020. Green dots denote earthquake below 2M, yellow circles earthquakes between 3M and 3M and red stars earthquakes over 3M. © Copyright remains with the author; all rights reserved, 2020.

The earthquake plots of the Vatnajökull region show the SW-NE trending fissure swarms and also a SE-NW trending line of earthquakes.  The head of the mantle plume is considered to be under the Vatnajökull ice-cap; perhaps we are seeing its influence on the plate junction?  We can also see the proximity of Grímsvötn to Bárðarbunga.

The Grímsvötn system, with 3,326 earthquakes, is not the most seismically active volcano; activity is overshadowed by seismic activity at Bárðarbunga (5,464 earthquakes), Askja and Herðubreið (a combined 15,645 earthquakes) and Öræfajökull (4,770 earthquakes).  The 2014 eruption of Holuhraun was both preceded and accompanied by intense seismic activity at Bárðarbunga, notably near the edges of the caldera, and deflation at Bárðarbunga.  Since the eruption, Bárðarbunga has started to re-inflate. Our data set starts a year or more after the end of that eruption.

Looking more closely at Grímsvötn we see that earthquake activity is focused on the south east of the caldera and at an E-W trending fissure to the north east of the volcano.  The E-W fissure is parallel to similar lines of activity further north at Bárðarbunga’s caldera.  We also picked up some activity at Þórðarhyrna.

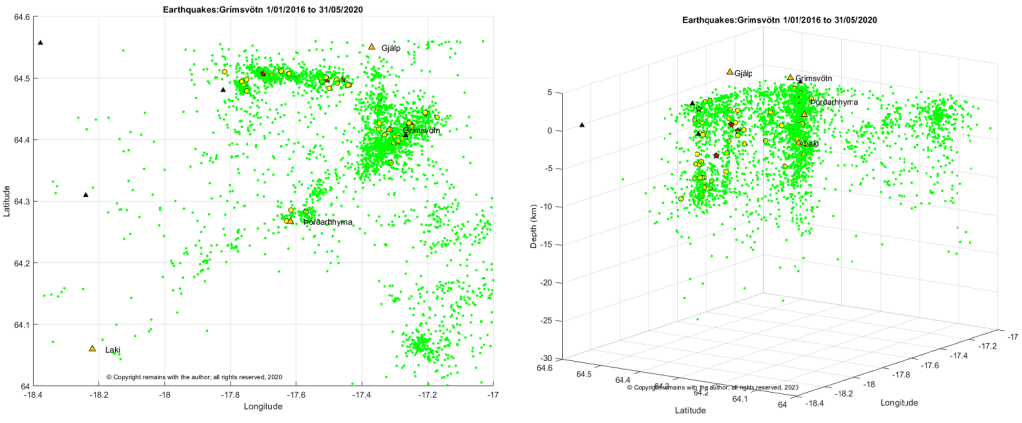

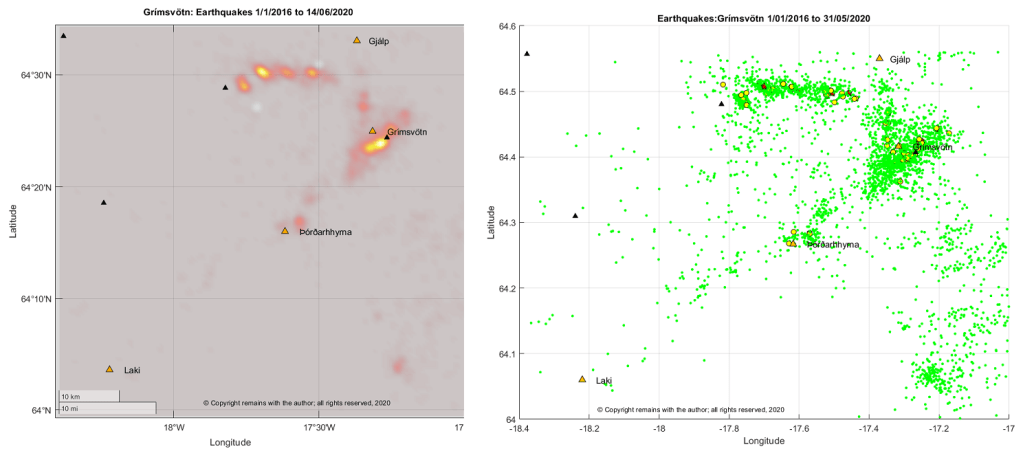

Fig 5: Geo-scatter and scatter earthquake plots by the author of seismic activity in the Grímsvötn region, Iceland, from 1 January 2016 to 14 June 2020. Green dots denote earthquake below 2M, yellow circles earthquakes between 3M and 3M and red stars earthquakes over 3M; black triangles are GPS stations and orange triangles, volcanic centres. © Copyright remains with the author; all rights reserved, 2020.
Fig 6: Scatter earthquake plots by the author of seismic activity in the Grímsvötn region, Iceland, from 1 January 2016 to 14 June 2020. Green dots denote earthquake below 2M, yellow circles earthquakes between 3M and 3M and red stars earthquakes over 3M; black triangles are GPS stations and orange triangles, volcanic centres. © Copyright remains with the author; all rights reserved, 2020

The earthquakes are telling only part of the story.  Grímsvötn has had a steady stream of earthquake activity during the period, but without the SO2 measurements from scientists, we would not be certain that magma, itself, was near the surface.

For updates on Grímsvötn, please visit IMO’s website (details below).

The Armchair Volcanologist

22 June 2020

Sources and Further Reading

“Grímsvötn”, Magnús T. Guðmundsson and Guðrún Larsen (Institute of Earth Sciences – Nordvulk, University of Iceland) In: Oladottir, B., Larsen, G. & Guðmundsson, M.T., Catalogue of Icelandic Volcanoes. IMO, UI and CPD-NCIP. Retrieved from Icelandic Volcanoes: http://icelandicvolcanos.is/?volcano=GRV

“Þórðarhyrna”, Magnús T. Guðmundsson and Guðrún Larsen (Institute of Earth Sciences – Nordvulk, University of Iceland) In: Oladottir, B., Larsen, G. & Guðmundsson, M.T., Catalogue of Icelandic Volcanoes. IMO, UI and CPD-NCIP. Retrieved from Icelandic Volcanoes: http://icelandicvolcanos.is/?volcano=THO

Fig 2: Map: After Guðmundsson and Miller (1997), Guðmundsson et al (2013a), Jóhannesson and Sæmundsson (1998a), Jóhannesson et al (1990). Base data, Iceland Geo Survey, IMO, NLSI | Base map: IMO.  In: Oladottir, B., Larsen, G. & Guðmundsson, M.T., Catalogue of Icelandic Volcanoes. IMO, UI and CPD-NCIP. Retrieved from Icelandic Volcanoes: http://icelandicvolcanos.is/?volcano=GRV

Smithsonian Institution Natural History Museum Global Volcanism Program (GVP): https://volcano.si.edu

Earthquake data: Icelandic Meteorology Office: IMO https://en.vedur.is/earthquakes-and-volcanism/earthquakes

Plots are the author’s own work.
